RAD-PT100-4-IFS - I/O expansion module | 2904035
RAD-PT100-4-IFS - I/O expansion module | 2904035
RAD-PT100-4-IFS - I/O expansion module | 2904035
RAD-PT100-4-IFS - I/O expansion module | 2904035
RAD-PT100-4-IFS - I/O expansion module | 2904035
RAD-PT100-4-IFS - I/O expansion module | 2904035
RAD-PT100-4-IFS - I/O expansion module | 2904035
RAD-PT100-4-IFS - I/O expansion module | 2904035

RAD-PT100-4-IFS - I/O expansion module | 2904035

  • Radioline I/O expansion module, 4 Pt 100 inputs (-50°C...+250°C)
1 911,92 zł
net / szt.
Lowest price in 30 days before discount: / szt.
Regular price: / szt.
14 days for easy returns
This product is not available in a stationary store
Safe shopping

Industrial Wireless: from IWLAN through Wireless IO to LoRaWAN

Industrial Wireless provide secure and reliable connections, tailored to various needs. We offer technologies such as IWLAN and Bluetooth for real-time communication, NearFi for short distances, as well as LoRaWAN and Trusted Wireless for long routes. Our offering includes access points, client devices, and appropriate antennas and cables for a comprehensive wireless network.
Industrial Wireless

Product Properties:

Product Type:

Expansion Module

MTTF:

1249 Years (SN 29500 Standard, temperature 25°C, duty cycle 21%)
506 Years (SN 29500 Standard, temperature 40°C, duty cycle 34.25%)
194 Years (SN 29500 Standard, temperature 40°C, duty cycle 100%)

Electrical Parameters:

Supply Voltage Range:

from 19.2 V DC to 30.5 V DC

Maximum Current Consumption:

≤ 38 mA

Maximum Power Loss under Rated Conditions:

0.912 W

Input Data:

Input Description:

Pt 100 Input

Connection Technique:

2- or 3-wire

Temperature Measurement Range:

from -50 °C to 250 °C

Process Data Channel:

16 Bit (per channel)

Dimensions

Drawing

Expansion I/O Module 2702290

Width:

17.5 mm

Height:

113 mm

Depth:

114.5 mm

Mounting Method:

DIN rail: 35 mm

Environmental Conditions

Protection Rating

IP20

Ambient Temperature

from -40 to 70 °C

Benefits

  • Easy module replacement during operation (Hot Swap)
  • Wide operating temperature range from -40°C to +70°C
  • Galvanic isolation between channels

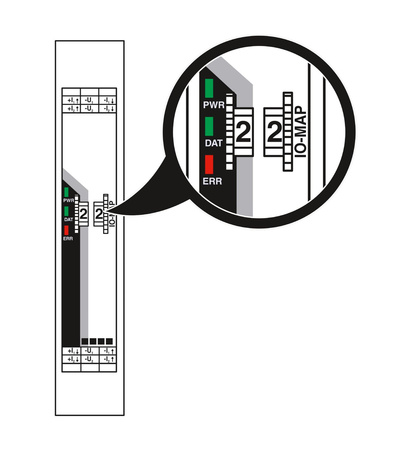

  • Intuitive activation using a knurled knob
