TC ROUTER 4102T-4G EU WLAN - Router | 1234353
- Industrial 4G LTE router, failover to 3G (UMTS/HSPA) and 2G (GPRS/EDGE), WLAN Access Point 802.11a/b/g/n, 150 Mb/s, 2.4 GHz + 5 GHz, 2-port switch, firewall, NAT, support for IPsec and OpenVPN, 4 digital inputs, 2 digital outputs.
Industrial routers for remote management and cybersecurity
Our robust industrial routers connect different networks using cable (LAN and NAT) or cellular technology (2G/3G/4G/5G) for remote management and securing local networks. Many of our products feature built-in VPN functionality and a firewall. To ensure full protection, mGuard routers safeguard against cyberattacks and malware.
Ethernet |
Connection type: |
|
Transmission speed: |
| 10/100 MBit/s (Auto-negotiation) |
|
Transmission range: |
| 100 m (Twisted Pair, shielded) |
|
Number of channels: |
|
Supported protocols: |
| TCP/IP, UDP/IP, HTTP(S), (S)FTP, TFTP, SCEP, RADIUS |
| VPN: IPsec, OpenVPN, GRE, L2TP, PPTP |
| Network Discovery: LLDP, CDP, FDP, SONMP, EDP, IRDP |
|
Auxiliary protocols: |
| ARP, DHCP, DNS, DynDNS, PING (ICMP), SMTP(S), NTP, SSL/TLS, STARTTLS, SMS |
|
Wireless transmission: |
Interface description: |
| GSM / GPRS / EDGE / UMTS / HSPA / LTE (FDD) |
|
Frequency range: |
| 800 MHz (LTE B20) |
| 850 MHz (LTE B5) |
| 900 MHz (LTE B8) |
| 1800 MHz (LTE B3) |
| 2100 MHz (LTE B1) |
| 2600 MHz (LTE B7) |
|
Transmission speed: |
| ≤ 150 Mbit/s (LTE, DL) |
| ≤ 50 Mbit/s (LTE, UL) |
|

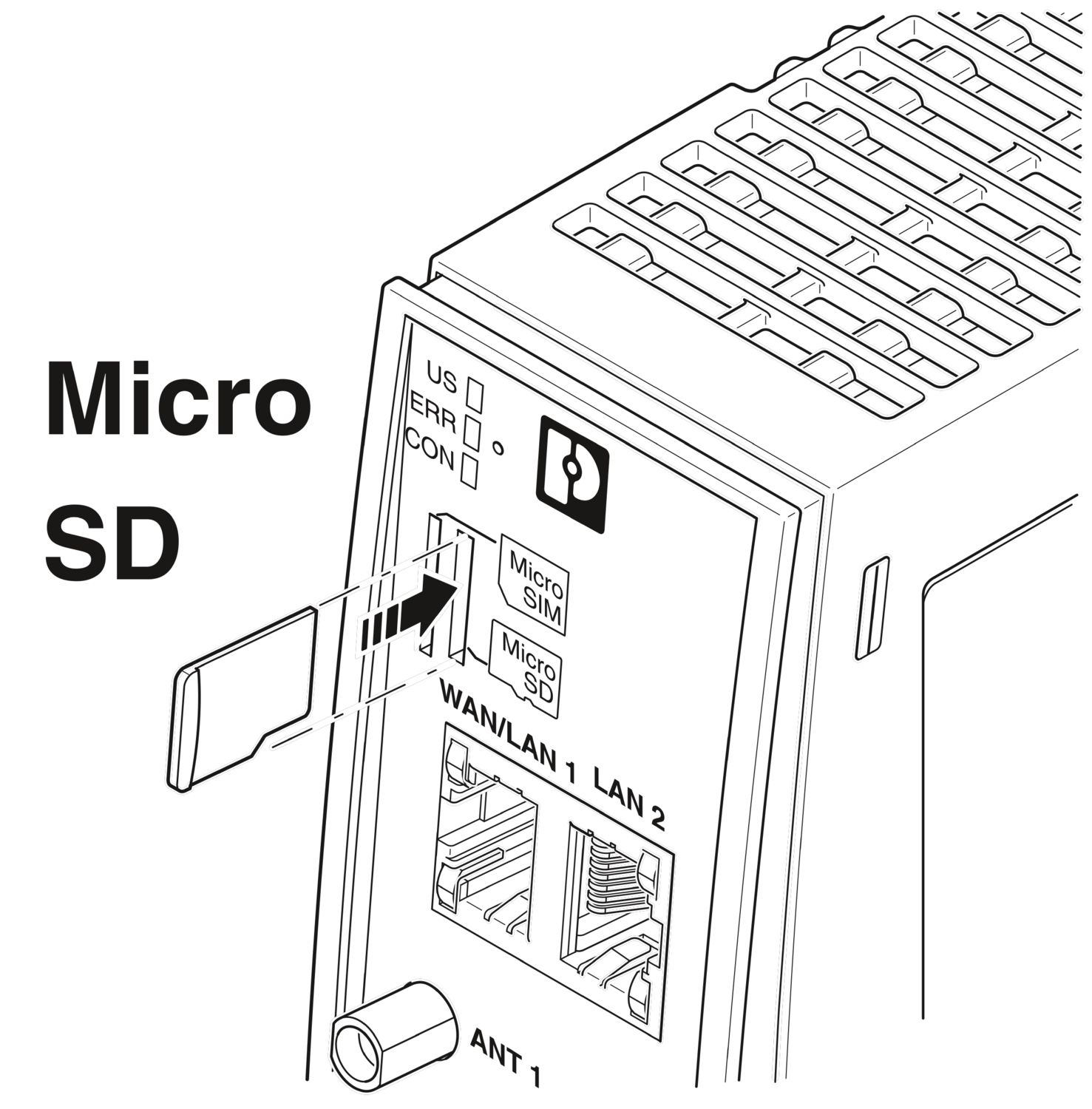

SIM slot: |
| Micro SIM (3FF) |
| eSIM (multiple profiles) |
|
Product properties: |
Application: |
|
Electrical parameters: |
Power supply voltage range: |
|
Typical current consumption: |
| < 180 mA (24 V DC) |
| < 500 mA (10 V DC) |
|
Mounting |
Mounting method |
|
Dimensions |
 |
| Width: 45 mm |
| Height: 130 mm |
| Depth: 130 mm |
|
Environmental conditions |
Protection rating |
|
Ambient temperature |
|
Benefits
- Supports LTE cellular network and Ethernet, RS-232, and RS-485 interfaces.
- Integrated management functions: SNMPv1/v2/v3, SSHv2, Telnet, and TOM (TC ROUTER Online Manager).
- Fast 10/100 Mb/s transmissions and support for VPN protocols: IPsec, OpenVPN, GRE, L2TP, PPTP.
- Supports WLAN IEEE 802.11 a/b/g/n with Access Point and client mode, secured with WPA/WPA2.
- IP20-rated construction, wide operating temperature range (-40°C ... 70°C), and compliance certifications, including CE and FCC.
Wszystkie parametry znajdują się poniżej w karcie produktu
