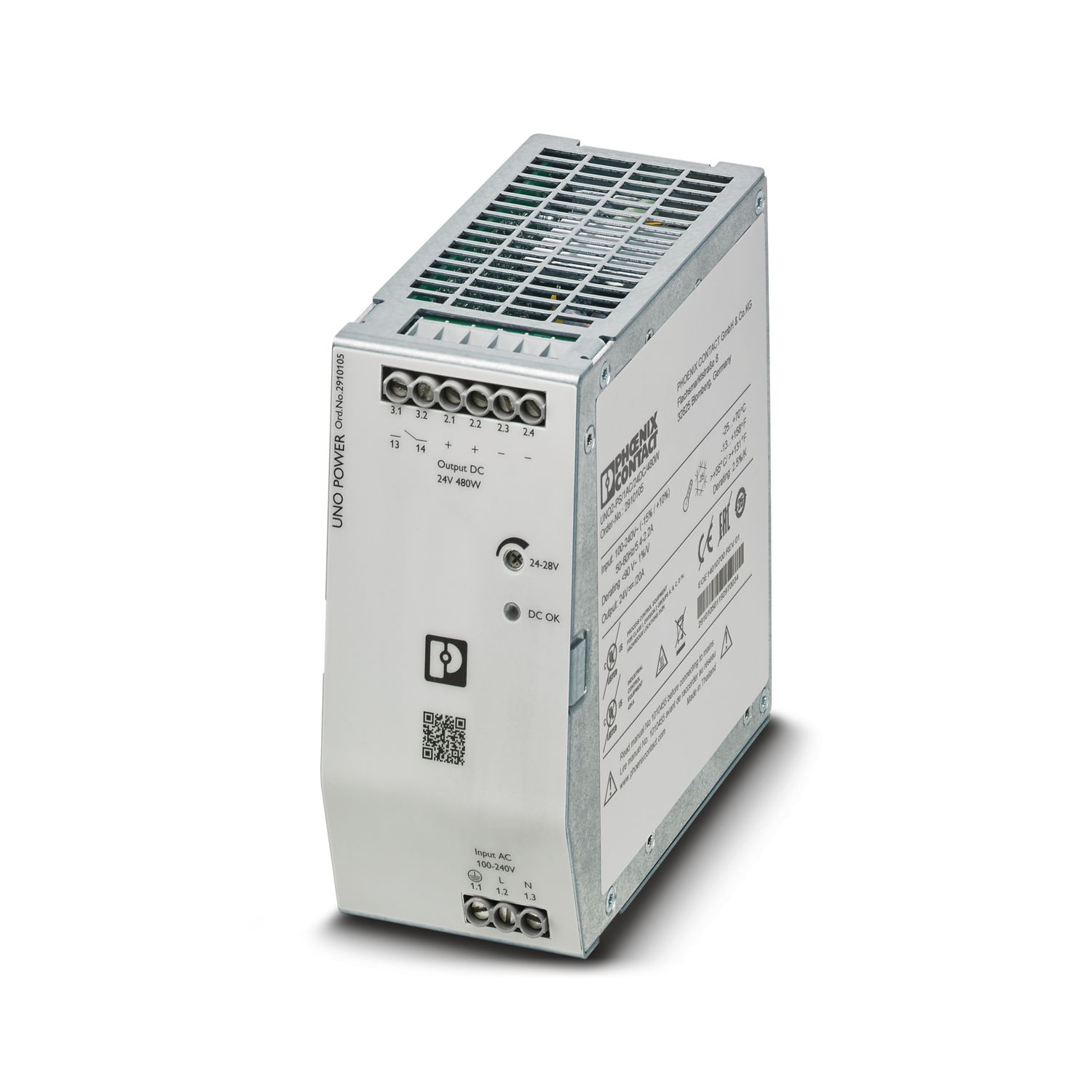

UNO2-PS/1AC/24DC/480W - Power supply | 2910105

UNO2-PS/1AC/24DC/480W - Power supply | 2910105

Primary circuit clocked power supplies, UNO POWER, Screw connection, Mounting on mounting rail, Input: 1-phase, Output: 24 V DC / 20 A, 24 V DC adjustable ... 28 V DC

721,23 zł

net / 1szt.

Lowest price in 30 days before discount: / szt.

Regular price: / szt.

List price:

You can buy for pts.

Notify of availability

Contact the shop staff, in order to estimate time of preparing this product for shipment.

Product available

Shipment

Cheap and fast delivery

14 days for easy returns

This product is not available in a stationary store

Safe shopping

Deferred Payments. Buy now, pay later, if you don't return it

Buy now, pay later - 4 steps

When choosing a payment method, select PayPo. PayPo - buy now, pay later

PayPo will pay your bill in the store.
On the PayPo website, verify your information and enter your social security number.

After receiving your purchase, you decide what suits you and what doesn't. You can return part or all of your order - then the amount payable to PayPo will also be reduced.

Within 30 days of purchase, you pay PayPo for your purchases at no additional cost. If you wish, you spread your payment over installments.

After purchase you will receive pts.

Power supplies

Product

Product type:

Power supply

Product family:

UNO POWER

AC mode

Input voltage range:

The range is from 100V AC to 240V AC

Tolerance -15% ... +10%

Frequency range (f_N):

50 Hz to 60 Hz

Tolerance ± 10%

Power backup time:

> 17 ms (120 V AC)

> 18 ms (230 V AC)

Current consumption:

type. 5.4 A (100 V AC)

type. 4.4 A (120 V AC)

type. 2.3 A (230 V AC)

type. 2.2 A (240 V AC)

Protection system:

Transient overvoltage protection; Varistor, Gasified spark gap

Input fuse:

8 A internal (device protection), fast

Output data

Efficiency:

type. 93 % (120 V AC)

type. 94.6 % (230 V AC)

Rated output voltage:

24 V DC

Rated output current (IN):

20 A

Short circuit resistance and idle test:

Yes

Reducing the rating parameters:

< 90 V AC (1 % for each V)

output power:

480 W

Start-up time:

< 1 s (U_Out = 10 % ... 90 %)

High MTBF reliability:

> 900,000 hours at 25 °C

> 530,000 hours at 40 °C

> 280,000 hours at 55 °C

Syngalization

Signaling methods

LED DC OK - signal status operation

Function

Visual indication of working condition.

Assembly

Mounting method

Mounting on a mounting rail

Mounting position

DIN rail horizontal NS 35, EN 60715

Dimensions

Width: 59 mm

Height: 130 mm

Depth: 129 mm, 125 mm (Depth of device (DIN rail mounting))

Ambient conditions

Degree of protection

IP20

Ambient temperature

from -25 °C to 70 °C (> 55 °C reduction: 2.5 % for each K)

Standard designation: Standards/Regulations

Surge category

EN 61010-1

II (≤ 3000 m)

EN 62477-1

III (≤ 3000 m)

Safety of use of power supplies up to 1100 V
(insulation gaps)

DIN EN 61558-2-16

Electrical safety

IEC 61010-2-201 (SELV)

Equipping power equipment with
auxiliary electronic devices

EN 50178/VDE 0160 (PELV)

Safety requirements for measuring, control, regulation and laboratory equipment

IEC 61010-1

Very low voltage PELV

IEC 61010-1 (SELV)

IEC 61010-2-201 (PELV)

Safe insulation

IEC 61558-2-16

IEC 61010-2-201

Permissible levels of harmonic current emissions

EN 61000-3-2

The requirements of the semiconductor industry in
with regard to voltage drops in the supply

SEMI F47 - 0706 (180 V AC)

Benefits

High efficiency reduces energy loss.
The power supply assembles quickly and easily thanks to its compact dimensions, snap-on mounting and simple screw connections.
It can operate over a wide temperature range from -25 °C to 70 °C, making it reliable in harsh environments.
The device is equipped with overvoltage and short-circuit protection, which increases its reliability.
The power supply is extremely versatile, allowing use in a variety of power conditions around the world.

Brand

Phoenix Contact
