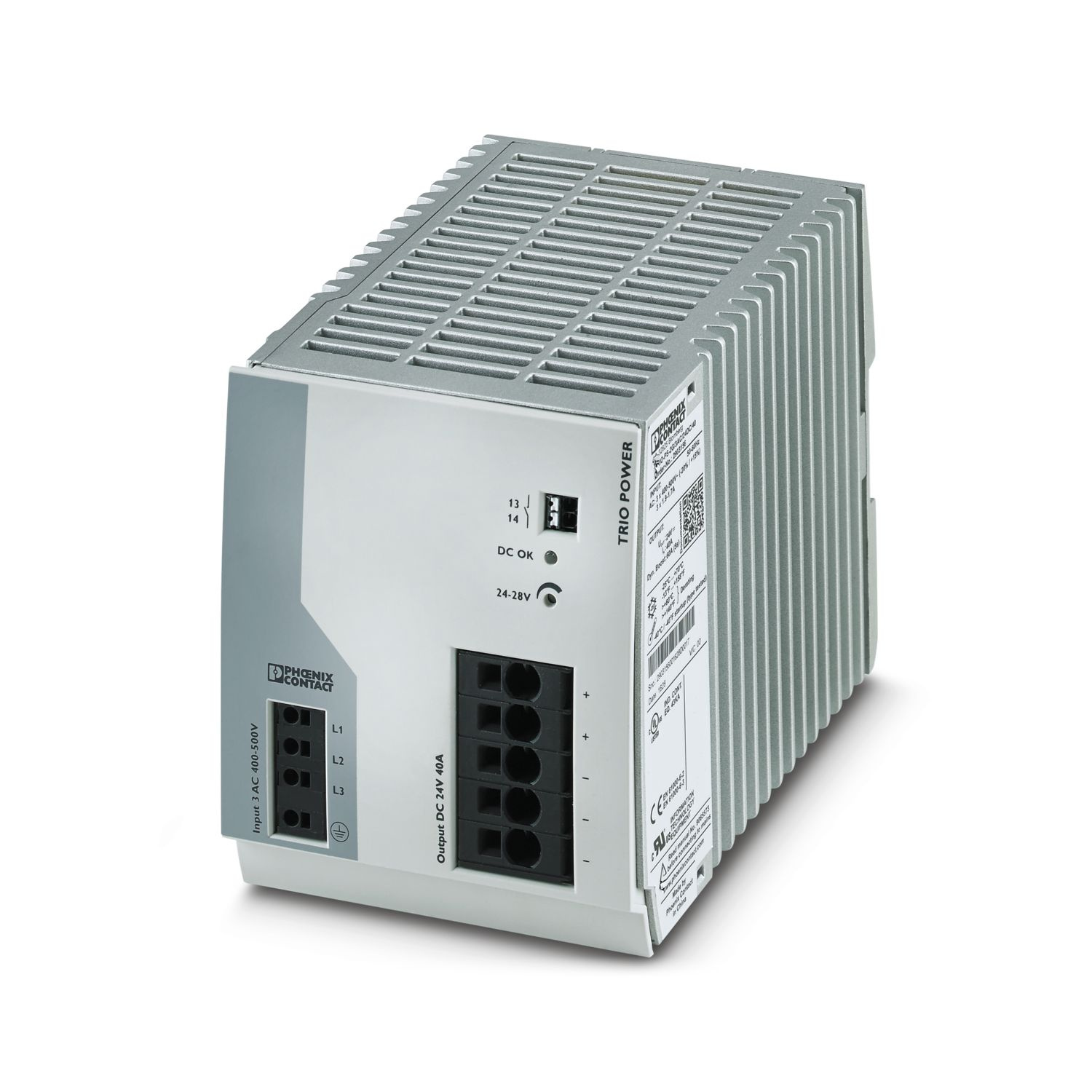

TRIO power supply clocked in primary circuit for mounting on support rail, 3-phase input, 24 V DC/40 A output, dynamic power reserve function, quick connection of rigid and flexible cables with cable sleeve without tools
Subscription products in your shopping cart
Choose one subscription frequency for all products in your cart or place separate orders for different renewal periods.
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
In your shopping cart there are products with different subscription order renewal period. If you want to order products with different subscription period place a separate order.
Our power supplies are reliable and ideally suited for any application. In our diverse product portfolio, you will find DIN-rail power supplies that vary in design, power and features. This makes them an excellent choice for a wide range of industries, such as automotive, mechanical engineering, process industries, and for the shipbuilding industry.
Product
Product type:
Power supply
Product family:
TRIO POWER
AC mode
Input voltage range:
The range is from 3x 400 V AC to 500 V AC
Tolerance -20 % ... +15 %
Frequency range (fN):
50 Hz to 60 Hz
Tolerance ±5 %
Power backup time:
type. 10 ms (400 V AC)
type. 20 ms (480 V AC)
Current consumption:
type. 3x 1.9 A (400 V AC)
type. 3x 1.7 A (480 V AC)
Protection system :
Protection against transient currents; Varistor
Output data
Efficiency:
type. 93 % (at 400 V AC)
type. 93.3 % (at 480 V AC)
Reducing the rating parameters:
60 °C to 70 °C (2.5 % for each K)
output power:
960 W
1440 W
Start-up time:
≤ 1 s (UOUT (10 % ... 90 %))
High reliability: MTBF
> 1,730,000 hours at 25 °C
> 1,051,000 hours at 40 °C
> 510,000 hours at 60 °C
Parallel connectivity:
Yes, to increase power and redundancy
Serial connectivity:
Yes
Assembly
Mounting method
Mounting on a mounting rail
Mounting position
DIN rail horizontal NS 35, EN 60715
Dimensions
Width: 110 mm
Height: 130 mm
Depth: 160 mm
Ambient conditions
Degree of protection
IP20
Ambient temperature
from -25 °C to 70 °C (> 60 °C derating: 2.5 % for each K)
Standard designation: Standards/Regulations
Railroad applications
EN 50121-4
Normative equipment of electronic devices with electronic technical means
EN 50178/VDE 0160 (PELV)
Normative limitation of higher harmonics of the network current
EN 61000-3-2
Normative electrical safety
IEC 62368-1 (SELV)
Normative low protection voltage
IEC 62368-1 (SELV) und EN 60204-1 (PELV)
Normative certain separation
DIN VDE 0100-410
Standard - Safety of use of power supplies up to 1100 V
DIN EN 61558-2-16
Benefits
Push-in connection technology for simple and quick installation.
The power supply has an MTBF (mean time between failures) of more than 1,000,000 hours, ensuring long-lasting and reliable operation.
Our product is suitable for outdoor installation, as it works stably at temperatures from -25°C to 70°C.
Automatic compensation of voltage drops thanks to adjustable output voltage, easily accessible from the front of the device.
