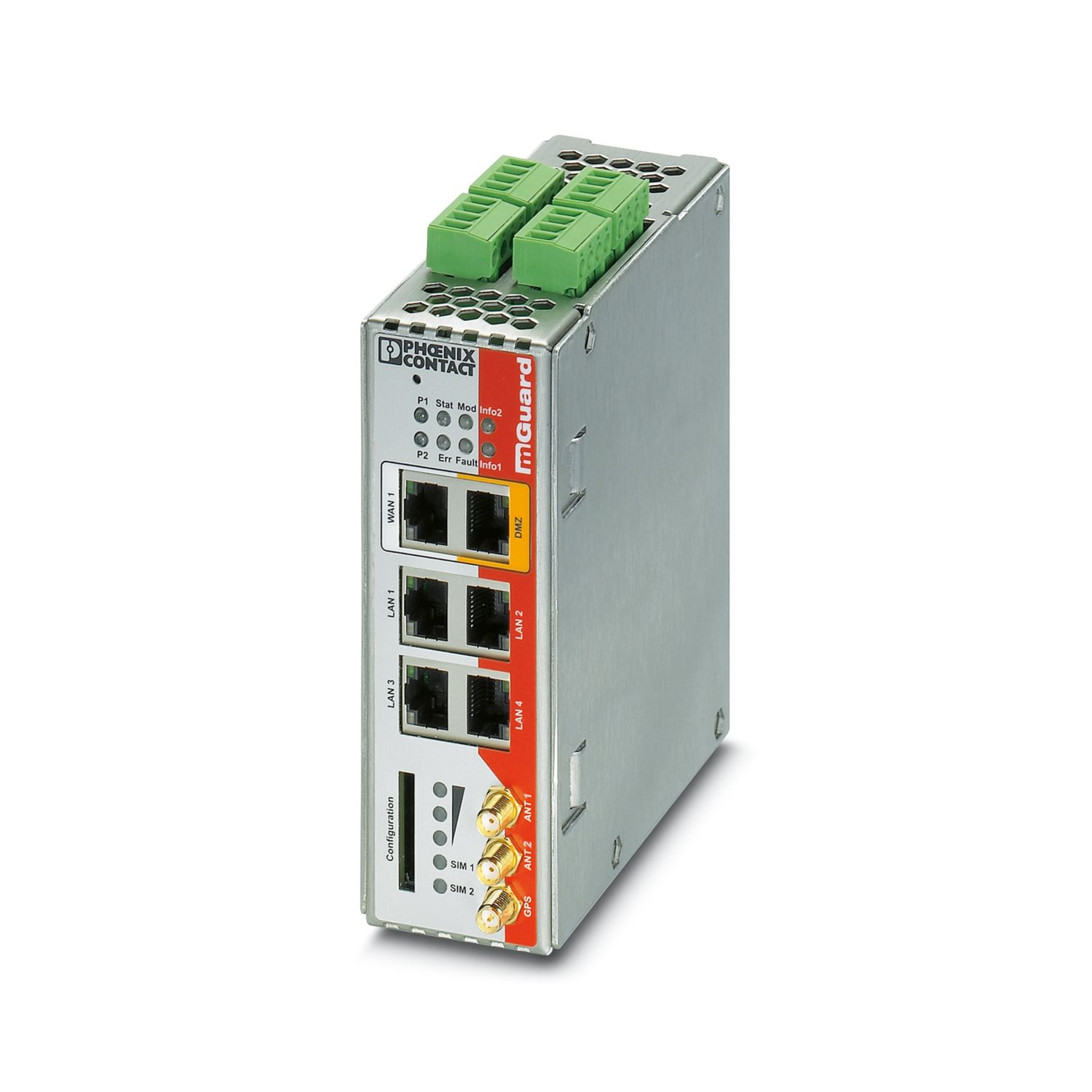

TC MGUARD RS4000 4G VPN - Router | 2903586
- A security device with WAN and 4G cellular interface, SD card slot, 10 VPN tunnels, intelligent firewall with full functionality, router with NAT/1:1-NAT, optionally CIFS Integrity Monitoring, 4-port managed switch, 2 SIM slots, GPS.
Industrial Routers for Remote Management and Cybersecurity
Our robust industrial routers connect various networks using cables (LAN and NAT) or cellular technology (2G/3G/4G/5G) for remote management and securing local networks. Many of our products feature built-in VPN functionality and firewalls. To ensure full protection, mGuard routers defend against cyberattacks and malware.
Ethernet |
Connection Type: |
|
Transmission Speed: |
| 10/100 Mbit/s (Autonegotiation) |
|
Transmission Range: |
| 100 m (Twisted Pair, shielded) |
|
Number of Channels: |
|
Supported Protocols: |
| TCP/IP, UDP/IP, FTP, HTTP |
|
Auxiliary Protocols: |
| ARP, DHCP, PING (ICMP), SNMP V1, SMTP |
|
System Properties |
System Functionality: |
| Router with intelligent firewall (Firewall) and VPN for 10 tunnels (up to 250 tunnels with an additional license) |
| CIFS Integrity Monitoring (optional) |
| SD card slot |
|
Product Features |
Firewall Throughput: |
| up to 124 Mbit/s (router mode), up to 58 Mbit/s (stealth mode) |
|
VPN Throughput: |
| up to 40 Mbit/s (router mode), up to 26 Mbit/s (stealth mode) |
|
Browser Support: |
|
Routing: |
| Standard routing, NAT, 1:1 NAT, and Port Forwarding |
|
Protection Against: |
| IP-Spoofing, DoS, and Syn Flood Protection |
|
Encryption Operations: |
| DES, 3DES, AES-128, -192, -256 |
|
Wireless Transmission: |
Interface Description: |
| GSM / GPRS / EDGE / UMTS / HSPA / LTE (FDD) |
|
Frequency Range: |
| 800 MHz (LTE B20) |
| 900 MHz (LTE B8) |
| 1800 MHz (LTE B3) |
| 2100 MHz (LTE B1) |
| 2600 MHz (LTE B7) |
| 900 MHz (UMTS/HSPA B8) |
| 1800 MHz (UMTS/HSPA B3) |
| 2100 MHz (UMTS/HSPA B1) |
| 900 MHz (2 W (EGSM)) |
| 1800 MHz (1 W (EGSM)) |
|
Transmission Speed: |
| ≤ 100 Mbit/s (LTE, DL) |
| ≤ 50 Mbit/s (LTE, UL) |
|
Electrical Parameters: |
Galvanic Isolation: |
|
Type of Network: |
|
Maximum Power Loss under Rated Conditions: |
|
Power Supply Voltage Range: |
|
Typical Current Consumption: |
|
Maximum Current Consumption: |
|
Mounting |
Mounting Method: |
|
Dimensions: |
| Width: 45 mm |
| Height: 130 mm |
| Depth: 114 mm |
|
Environmental Conditions |
Protection Class: |
|
Ambient Temperature: |
|
Benefits
- Enables secure data transfer using advanced encryption protocols.
- Configuration through Web-Based Management or microSD card simplifies device management.
- Allows the use of ready-to-use VPN infrastructure, saving time and resources.
- Ready-to-use VPN infrastructure supports a wide range of industrial applications.
- Provides a high level of security and reliability with advanced network protection features.
