QUINT capacitive module, with maintenance-free energy storage based on double-layer capacitors, Mounting on mounting rail, input: 24 V DC, output: 24 V DC / 20 A / 16 kJ with mounted universal DIN rail adapter UTA 107
Subscription products in your shopping cart
Choose one subscription frequency for all products in your cart or place separate orders for different renewal periods.
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
In your shopping cart there are products with different subscription order renewal period. If you want to order products with different subscription period place a separate order.
The DC UPS module ensures maximum system reliability by providing uninterrupted power even in the event of a network failure. With this solution, you avoid downtime and potential losses caused by sudden power interruptions. Continuing critical processes becomes possible, and your operations remain safe and efficient. Choose the appropriate UPS solution with an energy buffer or with built-in capacity to enjoy peace of mind and confidence that your system will operate reliably in any situation.
Product
Product type:
UPS module
Product family:
QUINT USV
Input Data
Input voltage range:
Range is from 22.5 V DC to 30 V DC
Turn-on threshold:
< 22 V DC
> 30 V DC
Current consumption:
IN = 20 A
Imax = 30 A
INo-load = 0.1 A
IChange = 10 A
PN = 488 W
Pmax = 599 W
PChange = 244 W
Hold-up time:
4 min (2.5 A)
30 s (20 A)
Charging time:
approx. 6.3 min (2.5 A)
approx. 2.1 min (10 A)
Output Data
Efficiency:
> 98% (with charged energy buffer)
Short-circuit withstand and no-load test:
Yes
Output voltage:
24 V DC
Output current:
20 A
Output power:
480 W
High reliability: MTBF
> 1,351,036 hours at 25 °C
> 903,325 hours at 40 °C
> 470,143 hours at 60 °C
Mounting
Mounting method:
DIN rail mounting
Mounting position:
Horizontal DIN rail NS 35, EN 60715

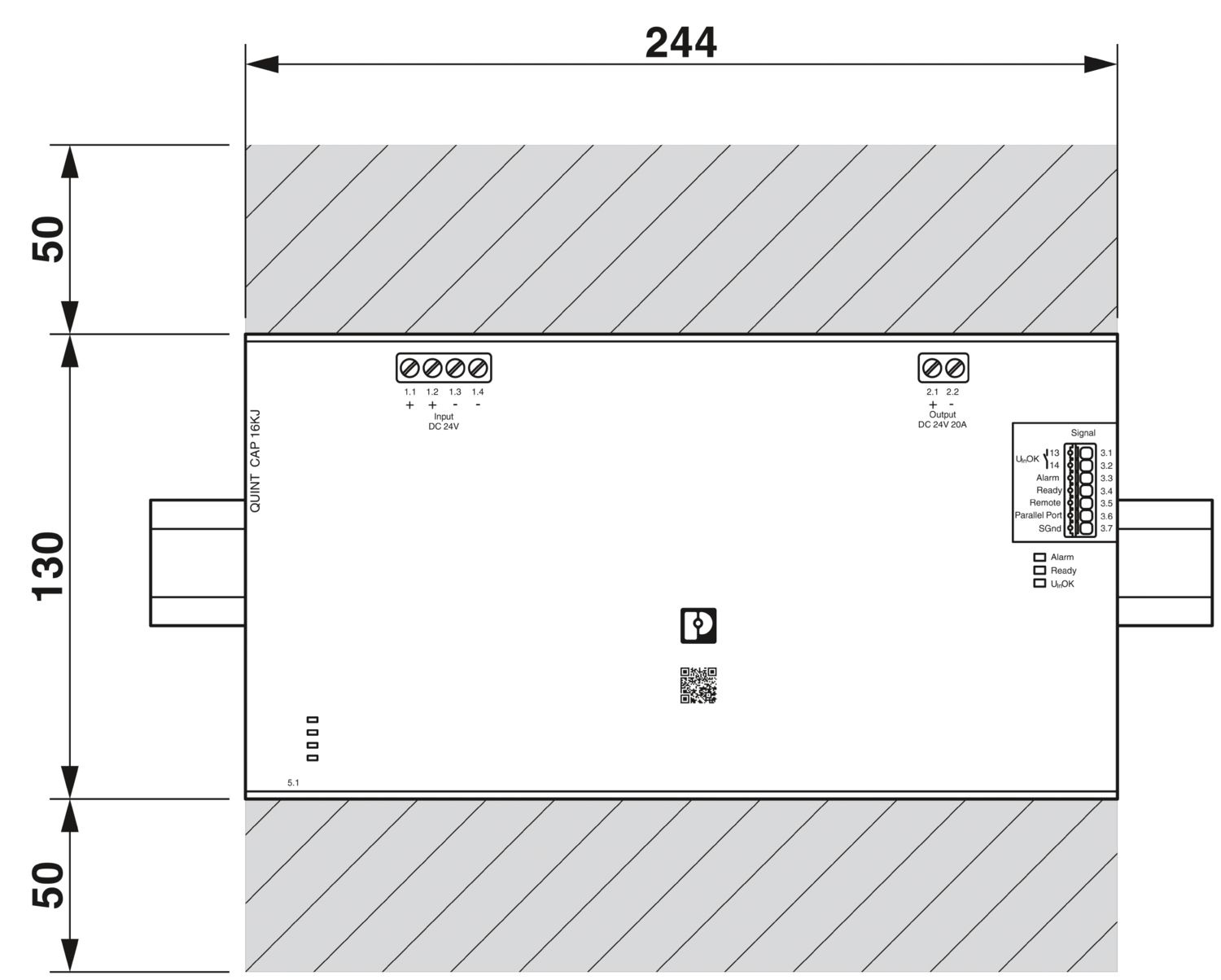

Dimensions:
Width: 244 mm
Height: 130 mm
Depth: 125 mm
Environmental Conditions
Degree of protection:
IP20
Ambient temperature:
from –25 °C to 70 °C (above 60 °C derating: 2.5% per K)
Standards / Regulations
Surge category:
EN 61010-1 II (≤ 4000 m)
EN 61010-2-201 II (≤ 4000 m)
UL 60950-1 II (≤ 4000 m)
Very low voltage PELV:
IEC 61010-1 (SELV)
IEC 61010-2-201 (PELV)
Benefits
The module provides easy network integration via PROFINET, EtherNet/IP, EtherCAT® and USB.
The module achieves over 98% efficiency, minimizing energy losses and ensuring high performance in various applications.
The device operates over an input voltage range of 22.5 V DC to 30 V DC, allowing flexible use and stable operation under different power conditions.
The module offers up to 4 minutes of hold-up time at 2.5 A and 30 seconds at 20 A. Charging time is approximately 6.3 minutes at 2.5 A and 2.1 minutes at 10 A, enabling rapid restoration of full functionality.
The device is designed for operation in temperatures from –25 °C to 60 °C and is resistant to shocks up to 30 g and vibrations up to 0.7 g, making it suitable for demanding industrial environments.
