Universal current measuring transducer, for measuring direct, alternating and distorted current, input current 0 ... 400 A, output 4 ... 20 mA
Subscription products in your shopping cart
Choose one subscription frequency for all products in your cart or place separate orders for different renewal periods.
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
In your shopping cart there are products with different subscription order renewal period. If you want to order products with different subscription period place a separate order.
AC Current Measuring Transducers and AC/DC Current Measuring Transducers
Here you will find the right measuring transducer for measuring direct, alternating, and distorted currents. The range includes various options for a wide measurement range: from very small currents, starting from 0 mA to 100 mA, up to higher currents of up to 600 A. To quickly add additional measurement points in existing installations, it is worth using variants with a removable Rogowski sensor.
Product Features:
Product Type:
Current Measuring Transducer
Electrical Parameters
Supply Voltage Range:
from 20 V DC to 30 V DC
Maximum Current Consumption:
(30 + IOUT) mA
Power Consumption:
1.65 W
Linearity Error:
<± 1% (of full-scale range)
Maximum Power Loss Under Rated Conditions:
1 W
Test Voltage:
3.5 kV AC (50 Hz, 60 s)
Step Response (10-90%):
150 ms
Max. Temperature Coefficient:
0.02 %/K (0 °C ... 60 °C)
0.04 %/K (-40 °C ... 65 °C)
Maximum Transfer Error:
<± 1% (limit value)
Rated Insulation Voltage
300 V AC (to ground)
Input Data
Input Current Range:
from 0 A AC/DC to 400 A AC/DC
Current Overload Capacity:
2 x IN
Measured Frequency Range:
from 20 Hz to 6000 Hz (0 Hz)
Output Data
Output Signal (Current):
from 4 mA to 20 mA
Maximum Output Signal Current:
< 25 mA
Voltage Output Load/Power:
< 300 Ω

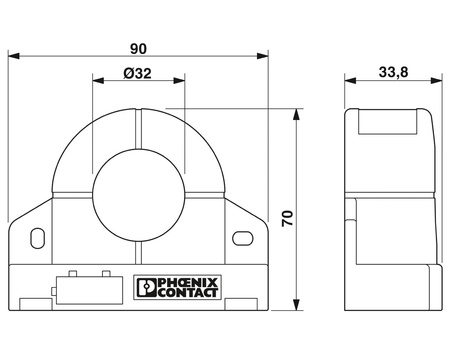

Dimensions
Width:
90 mm
Height:
33.8 mm
Depth:
85 mm
Mounting Method:
DIN rail mounting
Environmental Conditions
Protection Rating:
IP20
Ambient Temperature:
from -40 °C to 65 °C
Benefits
Option to equip with flexible Rogowski coils.
True RMS measurement in the range from 30 to 6000 Hz.
