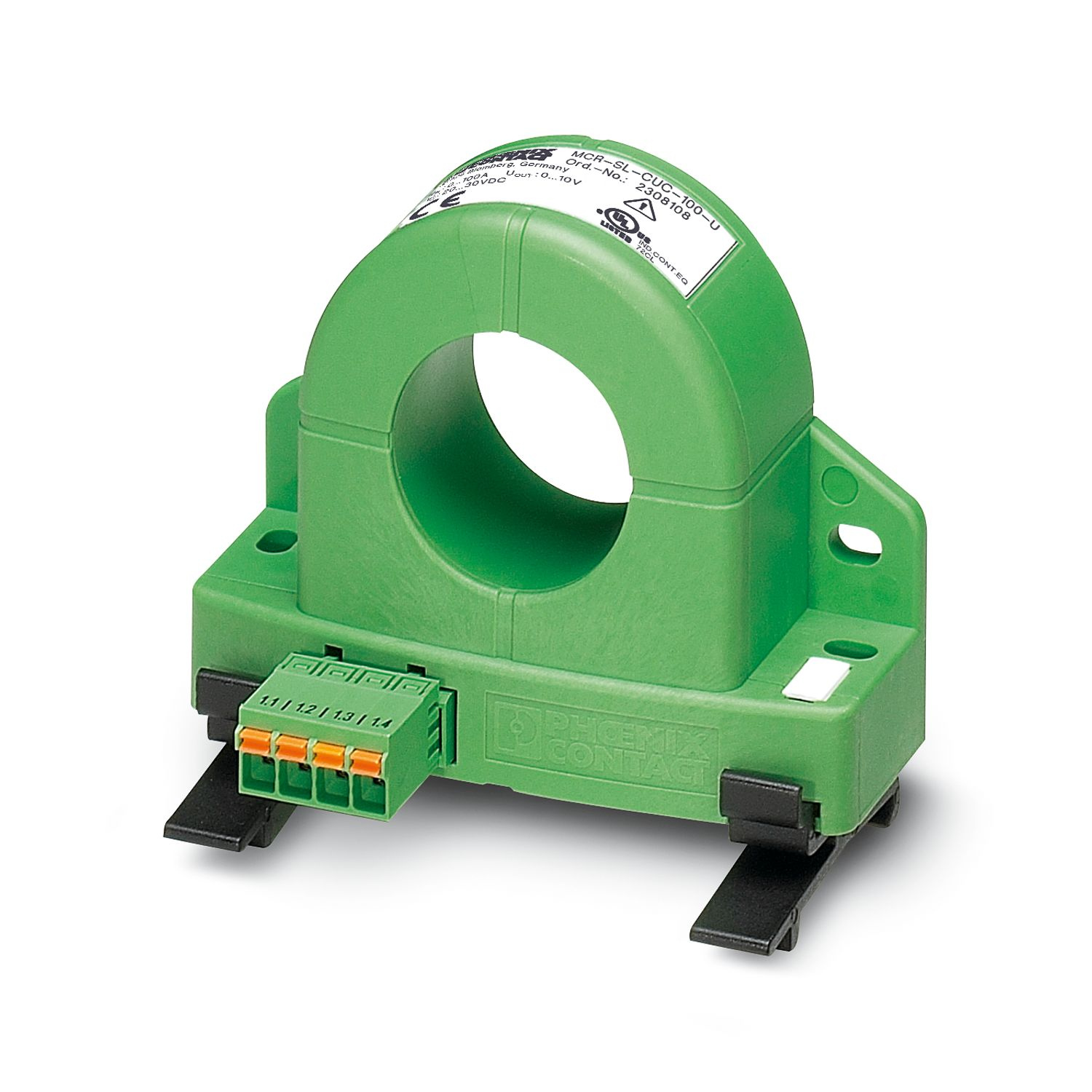

  • Universal current measuring transducer, for measuring direct, alternating and distorted current, input current 0 ... 100 A, output 0 ... 10 V
938,25 zł
net / szt.
Lowest price in 30 days before discount: / szt.+Infinity%
Regular price: / szt.Infinity%
14 days for easy returns
This product is not available in a stationary store
Safe shopping
Deferred Payments. Buy now, pay later, if you don't return it
Buy now, pay later - 4 steps
When choosing a payment method, select PayPo.PayPo - buy now, pay later
PayPo will pay your bill in the store.
On the PayPo website, verify your information and enter your social security number.
After receiving your purchase, you decide what suits you and what doesn't. You can return part or all of your order - then the amount payable to PayPo will also be reduced.
Within 30 days of purchase, you pay PayPo for your purchases at no additional cost. If you wish, you spread your payment over installments.

AC and AC/DC Current Measuring Transducers

Here you will find the right measuring transducer for measuring direct, alternating, and distorted currents. The range includes various options for a wide measuring range: from very small currents starting at 0 mA up to 100 mA, to larger currents up to 600 A. To quickly add additional measuring points in existing installations, it is worth using versions with a removable Rogowski sensor.
AC and AC/DC Current Measuring Transducers

Product Features:

Product Type:

Current measuring transducer

Electrical Parameters

Supply Voltage Range:

from 20 V DC to 30 V DC

Maximum Current Consumption:

30 mA

Linearity Error:

<± 1% (of the full-scale range)

Maximum Power Loss Under Rated Conditions:

1 W

Step Response (10–90%):

150 ms

Max. Temperature Coefficient:

0.02 %/K (0 °C ... 60 °C)
0.04 %/K (-40 °C ... 65 °C)

Maximum Transmission Error:

<± 1% (of the limit value)

Rated Insulation Voltage:

300 V AC (relative to ground)

Input Data

Input Current Range:

from 0 A AC/DC to 100 A AC/DC

Current Overload Capacity:

6 x IIN

Measured Frequency Range:

from 20 Hz to 6000 Hz

Output Data

Output Voltage Signal:

from 0 V to 10 V

Voltage Output Load/Power:

≥ 10 kΩ

Dimensions

Width:

90 mm

Height:

33.8 mm

Depth:

85 mm

Mounting Method:

DIN rail mounting

Environmental Conditions

Degree of Protection:

IP20

Ambient Temperature:

from -40 °C to 65 °C

Benefits

  • Option to equip with flexible Rogowski coils.
  • RMS measurement in the range from 30 to 6000 Hz.
  • Measurement range adjustment using slide switches.
