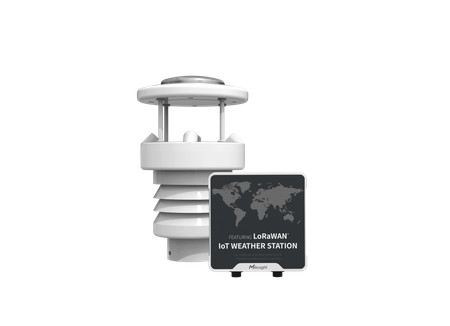

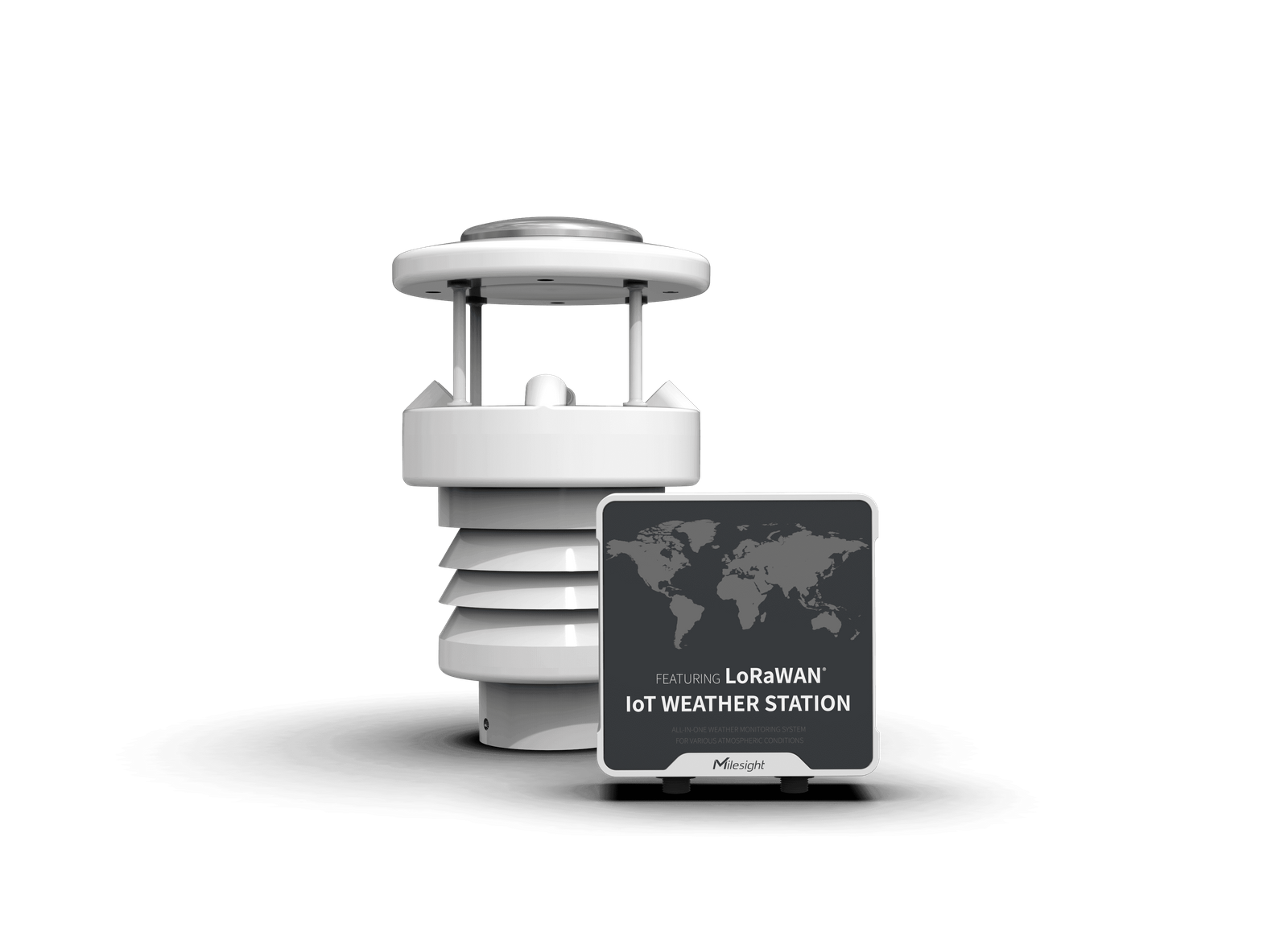

IoT Weather Station | Milesight WTS506

an ultimate all-in-one LoRaWAN weather monitoring system for various and continuous atmospheric conditions including temperature, humidity, wind speed, wind direction, barometric pressure and rainfall. It is solar-powered

All-in-One Weather Station

Specifically designed for continuous monitoring, the WTS weather station is the ultimate all-in-one weather monitoring system.

Standard Version

WTS305

Temperature, humidity, wind speed and direction, barometric pressure
Reliable and accurate measurement data
ABS construction: Aesthetic and impact-resistant
Weather monitoring for agriculture, meteorology, forestry, schools, buildings, and more

Pro Version

WTS506

Temperature, humidity, wind speed and direction, barometric pressure, and rainfall
Research-grade reliable and accurate measurement data
Durable aluminum alloy resistant to rust, corrosion, and oxidation
Weather monitoring for agriculture, meteorology, forestry, schools, buildings, and more

Smart Agriculture

Agricultural production largely depends on environmental conditions, and the Milesight Smart Agriculture solution helps automatically collect and analyze weather data.

Key Features

Accurate, reliable, and automated environmental monitoring and analysis
Saving time, money, and resources
Improving crop yield and quality

Smart Building

The Milesight IoT weather station provides essential weather data in a single device for buildings such as office spaces, apartment complexes, smart homes, and more, protecting structures from sudden and unexpected weather changes.

Key Features

Reliable real-time weather monitoring
Energy and resource savings through automation
Enhanced comfort and safety

Solar Power and Backup Battery Charging

The IoT weather station operates using solar energy. Thanks to built-in batteries, it can function for at least a week without sunlight due to its low power consumption.

Robust and Durable

The Milesight IoT weather station is designed to withstand harsh and humid environments, featuring IP65-rated sensors and an IP67-rated panel.

Storage Capacity for Up to 19,000 Historical Records

Data Retransmission Support for Reliable Communication

With data retransmission support, the device ensures that the network server receives all data even in case of occasional network failures.

Brand

Producer code

6974225033393

Series

Temperature

Operating Principle

Thermistor

Range

-40°C – 85°C

Accuracy

± 0.3°C

Resolution

0.1°C

Humidity

Resolution‏‏‎ ‎

0.5% RH

Accuracy‏‏‎ ‎

± 3% RH

Range‏‏‎ ‎

0% – 100% RH

Operating Principle‏‏‎ ‎

Capacitive humidity sensor

Wind Direction

Operating Principle‏‏‎ ‎‏‏‎ ‎‏‏‎ ‎

Ultrasonic

Range‏‏‎ ‎‏‏‎ ‎‏‏‎ ‎

0° – 360°

Accuracy‏‏‎‏‏‎ ‎‏‏‎ ‎‏‏‎ ‎

Resolution‏‏‎ ‎‏‏‎ ‎‏‏‎ ‎

0.1°C

Wind Speed

undefined

Operating Principle‏‏‎ ‎‏‏‎ ‎

Ultrasonic

Range‏‏‎ ‎‏‏‎ ‎

0 -60 m/s

Accuracy‏‏‎ ‎‏‏‎ ‎

± 0.3 m/s or ± 3% (whichever is greater)

Resolution‏‏‎ ‎‏‏‎ ‎

0.1 m/s

Barometric Pressure

Operating Principle‏‏‎ ‎‏‏‎ ‎‏‏‎ ‎‏‏‎ ‎

Piezoresistive absolute pressure sensor

Range‏‏‎ ‎‏‏‎ ‎‏‏‎ ‎‏‏‎ ‎

500 – 1100 hPa

Accuracy‏‏‎ ‎‏‏‎ ‎‏‏‎ ‎‏‏‎ ‎

±0.5 hPa

Resolution‏‏‎ ‎‏‏‎ ‎‏‏‎ ‎‏‏‎ ‎

0.1 hPa

Physical Characteristics

Material

Aluminium Alloy

Weight

2.15 kg

Dimension

ф160 x 263 x ф73 mm

Operating Temperature

-40°C to +85°C

Relative Humidity

0% – 100% (non-condensing)

Ingress Protection

Installation

Pole Mounting

Rainfall (WTS506 Only)

Operating Principle‏‏‎ ‎‏‏‎ ‎‏‏‎ ‎‏‏‎ ‎‏‏‎ ‎

Piezoelectric

Range‏‏‎ ‎‏‏‎ ‎‏‏‎ ‎‏‏‎ ‎‏‏‎ ‎

0 – 500 mm

Accuracy‏‏‎ ‎‏‏‎ ‎‏‏‎ ‎‏‏‎ ‎‏‏‎ ‎

±0.5 mm (< 10 mm), ±5 %( >10 mm)

Resolution‏‏‎ ‎‏‏‎ ‎‏‏‎ ‎‏‏‎ ‎‏‏‎ ‎

0.01 mm
