Managed Switch 2000, 6 RJ45 ports 10/100 MBit/s, 2 SC-Singlemode 100 Mbit/s, PROFINET Conformance-Class B, Extended temperature range
Subscription products in your shopping cart
Choose one subscription frequency for all products in your cart or place separate orders for different renewal periods.
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
In your shopping cart there are products with different subscription order renewal period. If you want to order products with different subscription period place a separate order.
Industrial Ethernet Switches – Managed and Unmanaged
Our range of industrial Ethernet switches includes both managed and unmanaged models, offering Gigabit, PoE, and IEC 61850 certification, designed for DIN rail mounting. This allows you to create efficient and secure networks even in harsh conditions. Copper and fiber optic ports, along with redundancy features, enable flexible system connections and easy segmentation of the industrial network.
Ethernet
Connection Type:
RJ45
Transmission Speed:
10/100 MBit/s
Transmission Range:
100 m (per segment)
Fiber Optic
Connection Type:
SC
Number of Interfaces:
2
Minimum Transmit Power:
-15 dBm
Maximum Transmit Power:
-7 dBm
Minimum Receiver Sensitivity:
-34 dBm
Maximum Receiver Sensitivity:
-3 dBm
Transmission Speed:
100 Mb/s (full duplex)
Transmission Range:
36000 m (Glass fibers F-G 9/125 0.36 dB/km)
32000 m (Glass fibers F-G 9/125 0.4 dB/km)
26000 m (Glass fibers F-G 9/125 0.5 dB/km)
Number of Channels:
2 (SC-Singlemode)
Product Features:
Product Type:
Switch
MTTF:
343.16 Years (Standard SN 29500, temperature 25°C, duty cycle 21%)
153.37 Years (Standard SN 29500, temperature 40°C, duty cycle 34.25%)
18.66 Years (Standard SN 29500, temperature 70°C, duty cycle 100%)
Diagnostic Functions:
RMON History
LLDP (Link Layer Discovery Protocol)
SNMP-Traps
SysLog
CRC-Surveillance
Network and Management Functions:
Web-based management (HTTP/HTTPS)
User management (LDAP, RADIUS)
SNMPv1/v2/v3
VLAN (up to 32 VLANs)
IGMP Snooping/Querier (v1/v2)
Quality of Service (8 priority classes)
Port Security MAC-based, RADIUS (IEEE 802.1X), MAC Authentication Bypass
Electrical Parameters:
Power Supply Voltage:
24 V DC (redundant)
Power Supply Voltage Range:
From 9 V DC to 57 V DC
Maximum Power Loss Under Rated Conditions:
6.75 W
Typical Current Consumption:
235 mA (at 24 V DC)
Maximum Current Consumption:
1.5 A
Mounting
Mounting Method:
DIN rail mounting

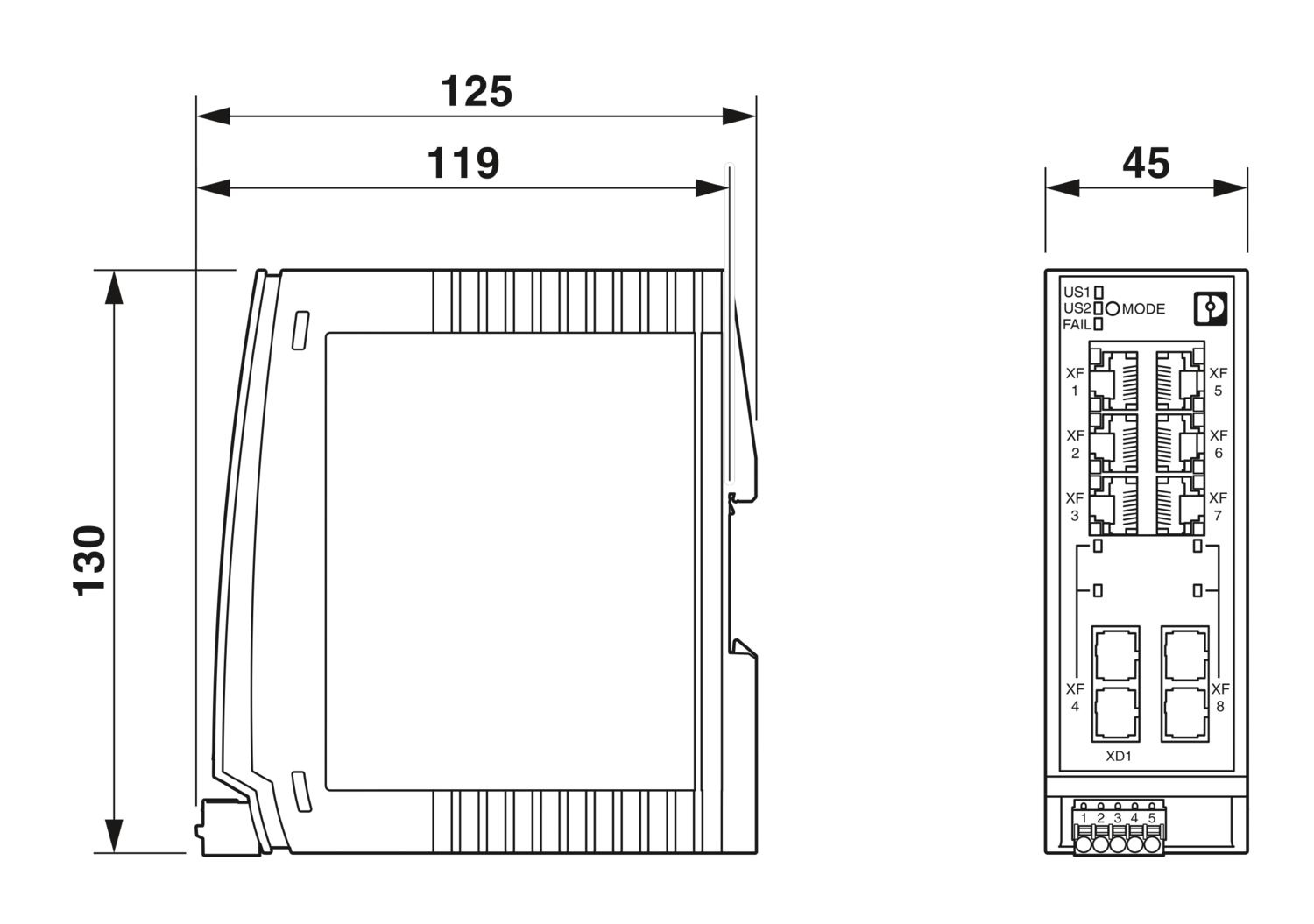

Dimensions:
Width: 45 mm
Height: 130 mm
Depth: 119 mm
Environmental Conditions
Protection Level:
IP20
Ambient Temperature:
From -40 to 70 °C
Benefits
Dimensions: 45 mm width, 130 mm height, 119 mm depth. Polycarbonate housing reinforced with fiber.
6 Ethernet RJ45 ports (10/100 MBit/s) and 2 fiber optic SC ports (100 Mb/s) with a range of up to 36 km.
Supports RMON, LLDP, SNMP-Traps, IGMP Snooping, VLAN, MRP, RSTP, port mirroring, and address conflict detection.
Operates in temperatures from -40°C to 70°C, resistant to shocks (30g) and vibrations (5g).
Certified for ATEX, IECEx, UL, EAC Ex, CCC, DNV GL, ensuring safe operation in explosion-prone areas and marine applications.
