ANT-OMNI-0671-03 - Antena | 1565400

Multi-band omnidirectional antenna for invisible installation in plastic control cabinets, frequency band: 0.6 GHz ... 7.1 GHz, gain: 1 dBi .... 2 dBi, connector: SMA (male), antenna plug with 90° joint

245,67 zł

net / szt.

Lowest price in 30 days before discount: / szt.

Regular price: / szt.

14 days for easy returns

This product is not available in a stationary store

Safe shopping

Deferred Payments. Buy now, pay later, if you don't return it

Buy now, pay later - 4 steps

When choosing a payment method, select PayPo.

PayPo will pay your bill in the store.
On the PayPo website, verify your information and enter your social security number.

After receiving your purchase, you decide what suits you and what doesn't. You can return part or all of your order - then the amount payable to PayPo will also be reduced.

Within 30 days of purchase, you pay PayPo for your purchases at no additional cost. If you wish, you spread your payment over installments.

Industrial Wireless: from IWLAN through Wireless IO to LoRaWAN

Industrial Wireless provide secure and reliable connections, tailored to various needs. We offer technologies such as IWLAN and Bluetooth for real-time communication, NearFi for short distances, as well as LoRaWAN and Trusted Wireless for long routes. Our offering includes access points, client devices, and appropriate antennas and cables for a comprehensive wireless network.

Product Features:

Product Type:

Antenna

Radiation Pattern:

Omnidirectional

Special Features:

Monopole Antenna

Gain:

1.12 dBi (617 MHz ... 960 MHz)

2.16 dBi (1.7 GHz ... 2.7 GHz)

1.89 dBi (5.15 GHz ... 5.25 GHz)

1.91 dBi (5.25 GHz ... 5.35 GHz)

2.11 dBi (5.47 GHz ... 5.725 GHz)

2.09 dBi (5.725 GHz ... 5.85 GHz)

2.01 dBi (5.85 GHz ... 5.895 GHz)

2.02 dBi (5.925 GHz ... 6.425 GHz)

1.58 dBi (6.425 GHz ... 6.525 GHz)

1.91 dBi (6.525 GHz ... 6.875 GHz)

2.05 dBi (6.875 GHz ... 7.125 GHz)

Electrical Parameters

Frequency Range:

from 617 MHz to 960 MHz

from 1.71 GHz to 2.7 GHz

from 5.15 GHz to 7.125 GHz

Impedance:

50 Ω

Maximum Power:

1.00 W

Connection Data

Type of Connector:

SMA (male)

Dimensions

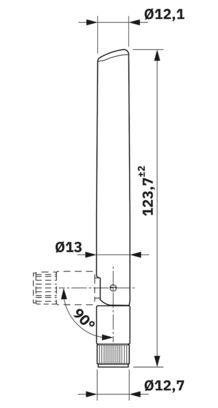

Drawing:

Height:

123 mm

Diameter:

13 mm

Environmental Conditions

Protection Rating:

IP67

Ambient Temperature:

from -40 °C to 70 °C

Benefits

Versatility of use thanks to the wide frequency range.

Brand

Phoenix Contact

Symbol

4067923043251
