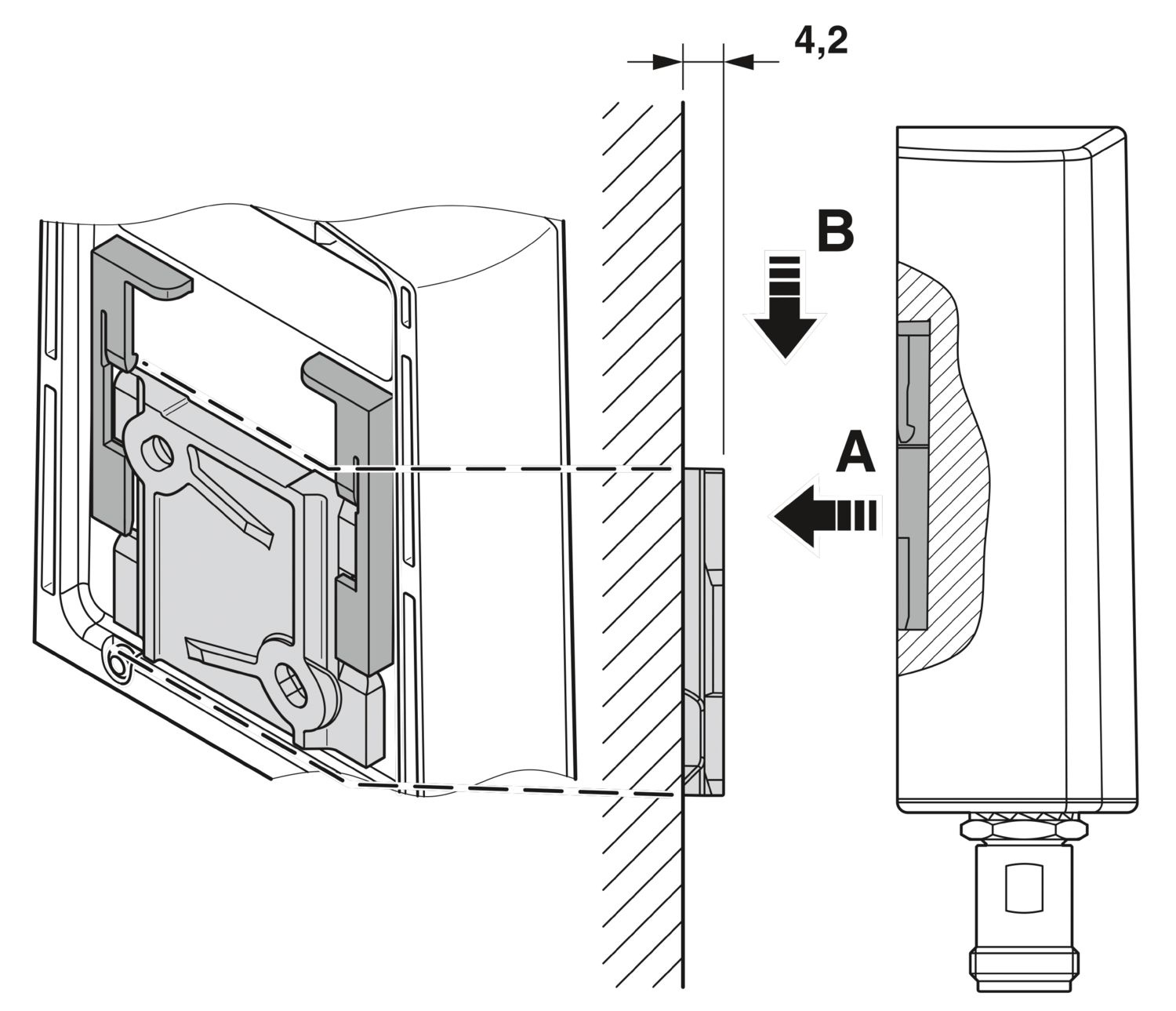

  • Directional antenna for wall or pole mounting, 2.4 GHz / 5 GHz, gain: 9 dBi, IP67, impact resistance: IK06, seawater resistance, connector: N (female), mounting bracket and mast clamps included, ATEX and IECEx approval
928,67 zł
net / szt.
Lowest price in 30 days before discount: / szt.
Regular price: / szt.
14 days for easy returns
This product is not available in a stationary store
Safe shopping

Industrial Wireless: from IWLAN through Wireless IO to LoRaWAN

Industrial Wireless provide safe and reliable connections, tailored to diverse needs. We offer technologies such as IWLAN and Bluetooth for real‑time communication, NearFi for short distances, and LoRaWAN and Trusted Wireless for long distances. Our product range includes access points, client devices, and appropriate antennas and cables for a comprehensive wireless network.
Industrial Wireless

Product Features:

Product Type:

Antenna

Radiation Pattern:

Directional

Gain:

9 dBi

Vertical Beamwidth:

55° (for 2.4 GHz ... 2.5 GHz)
55° (for 5.1 GHz ... 5.9 GHz)

Horizontal Beamwidth:

75° (for 2.4 GHz ... 2.5 GHz)
55° (for 5.1 GHz ... 5.9 GHz)

Polarization:

Linear vertical

Electrical Specifications

Frequency Band:

2.4 GHz
5 GHz

Frequency Range:

from 2.4 GHz to 2.5 GHz
from 5.15 GHz to 5.83 GHz

Impedance:

50 Ω

Maximum Power:

10.00 W

Connection Data

Type of Connector:

N (female)

External Diameter:

from 25 mm to 85 mm (Mast)

Safety Specifications

Input Voltage Ui:

30 V

Input Current Ii:

600 mA

Input Power Pi:

≤ 1 W (30 dB)

Max. Internal Inductance Li:

negligible

Capacitance Ci:

negligible

Dimensions

Drawing:

Antenna 2701186

Width:

80 mm

Height:

100 mm

Length:

35 mm

Cable/Wire

Connection Cable

no

Other Resistance

resistant to seawater

Environmental Conditions

Protection Rating:

IP67

Ambient Temperature:

from -40 °C to 75 °C

Benefits

  • Ideal for stationary or linearly moving 2.4 GHz or 5 GHz applications
  • Designed for explosive hazardous areas
  • Resistant to seawater
  • Enclosure resistant to impact (IK08)
