ILB BT ADIO MUX-OMNI - Radio set | 2884208
- Wireless MUX kit, two modules each with 16 digital inputs and outputs and 2 analog inputs and outputs (0 ... 20 mA, 0 ... 10 V), RSMA antenna connector (female), complete with Omni antennas with 1.5 m cable
Industrial Wireless: from IWLAN through Wireless IO to LoRaWAN
Industrial Wireless provides secure and reliable connections, tailored to various needs. We offer technologies such as IWLAN and Bluetooth for real‐time communication, NearFi for short distances, as well as LoRaWAN and Trusted Wireless for long‐range links. Our offering includes access points, client devices, and appropriate antennas and cables for a comprehensive wireless network.
Product Features: |
Construction: |
|
Product Type: |
|
Product Family: |
|
Application: |
|
MTTF: |
| 1458 Years (Standard SN 29500, temperature 25°C, duty cycle 21%) |
| 557 Years (Standard SN 29500, temperature 40°C, duty cycle 34.25%) |
| 219 Years (Standard SN 29500, temperature 40°C, duty cycle 100%) |
|
MTBF: |
| 465 Years (Telcordia standard, temperature 25°C, duty cycle 21% (5 days a week, 8 hours per day)) |
| 140 Years (Telcordia standard, temperature 40°C, duty cycle 34.25% (5 days a week, 12 hours per day)) |
|
Diagnostic Indicators: |
| Digital outputs short circuit or overload LED |
| FS-Radio connection LED |
| Logic circuits and actuator devices voltage LED |
| Radio connection quality indicator (4 LEDs) |
|
Timings: |
Connection establishment time: |
| ≤ 3 s (to establish a wireless connection) |
|
Delay time: |
| ≤ 10 ms (Typical waiting time) |
| ≤ 800 ms (Fail-Safe function in case of radio connection interruption) |
|

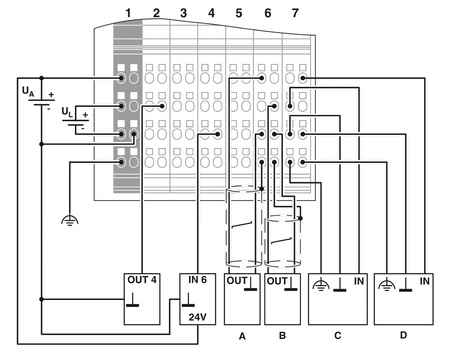

Electrical Parameters: |
Type of connector: |
|
Supply voltage: |
|
Supply voltage range: |
| from 19.2 V DC to 30.5 V DC (via power plug) |
|
Current consumption: |
| 60 mA (Logic supply, at 24 V DC, 25°C) |
| 25 mA (Actuator supply, + Digital OUT load current (8 A)) |
|
Maximum power loss under rated conditions: |
|
Analog Inputs: |
Input designation: |
|
Number of inputs: |
|
Input current signal: |
|
Input resistance: |
|
Input voltage signal: |
|
Output resistance, 12-bit input voltage: |
|
Measurement resolution: |
|
Digital Inputs: |
Input designation: |
|
Number of inputs: |
|
Type of connector: |
|
Connection technique: |
|
Input voltage range for signal "0": |
|
Input voltage range for signal "1": |
|
Rated input voltage UIN: |
|
Typical input current per channel: |
|
Input frequency: |
|
Analog Outputs: |
Output designation: |
|
Number of outputs: |
|
DAC resolution: |
|
Output current signal: |
|
Output current load: |
|
Output voltage signal: |
|
Output voltage load: |
|
Digital Outputs: |
Output designation: |
|
Type of connector: |
|
Connection technique: |
|
Number of outputs: |
|
Output current: |
|
Maximum output current per channel: |
|
Rated output voltage: |
|
Output current in off state: |
| ≤ 10 µA (In no-load condition, voltage can also be measured on the input in the low state.) |
|
Rated load, inductive: |
|
Rated load, lamps: |
|
Rated load, resistor: |
|
Reverse voltage resistance: |
| reverse voltage resistance |
|
Behavior in case of overload: |
|
Behavior in case of inductive overload: |
| Possibility of output destruction |
|
Reaction to power-off: |
| The output is immediately disconnected after the supply voltage is removed |
|
Overcurrent protection: |
|
Functions: |
Radio approvals: |
| Europe, other countries available in the online store |
|
Wireless: |
Modulation type: |
| GFSK (Gaussian Frequency Shift Keying) |
|
Type of connector: |
|
Number of channels: |
|
Frequency range: |
| from 2.402 GHz to 2.48 GHz (ISM Band) |
|
Frequency band: |
|
Radio standard: |
|
Transmitting power: |
|
Receiver sensitivity: |
|
Dimensions |
Drawing: |
|
Width: |
|
Height: |
|
Depth: |
|
Mounting method: |
|
Environmental Conditions |
Protection rating |
|
Ambient temperature |
|
DIN rail mounting
Benefits
- Wireless diagnostics using a bar indicator
- Range from 50 m to 100 m in industrial halls with omnidirectional antennas and up to 400 m in open areas with directional antennas
- Latest Bluetooth 4.0 technology
- Fast connection and signal transmission
- Plug and Play - operation without the need for configuration
